Introduction:

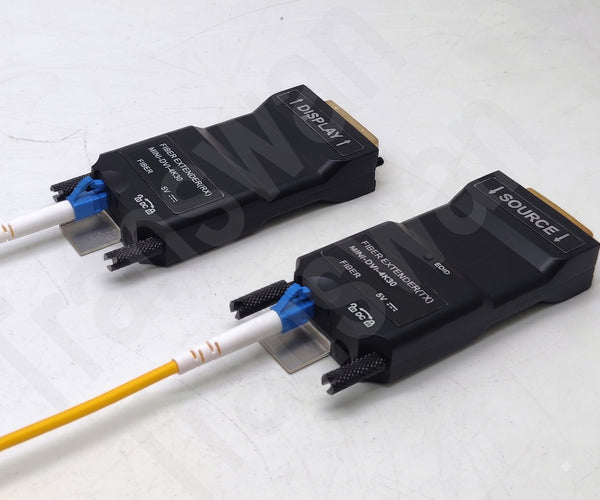

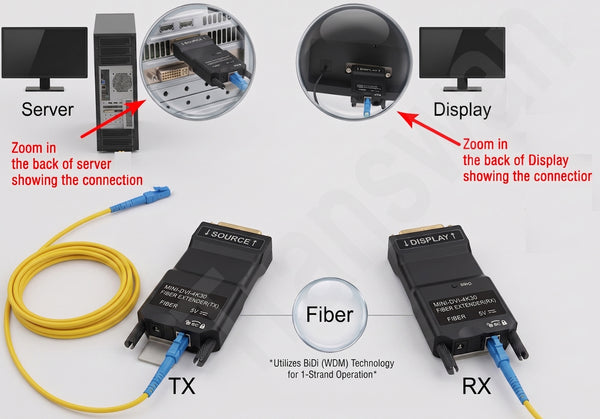

4K DVI Optical Fiber Extender includes a transmitter and a receiver, which can extend 4K DVI to remote location over single fiber cable. The device support DVI transmission at real-time, max resolution support can reach 4096x2160@30Hz, max distance 1Km (SM fiber) or 300 Meters (MM Fiber) . The device can be widely used in broadcast ,military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc. plug and play connection between Apple TV 4K, Fire TV Stick 4K, nVidia Shield TV, game console, or other professional video.
Feature:
1. Support 4096x2160@30Hz and dowward compatible
2. Transparent transmission EDID, Support HDCP, support EDID Automatic Identification
3. Max extension distance 1 Kilometers(SM fiber), with Bi-directional 10Gbps SFP+ Module
4. Single fiber transmission, plug and play, convenient for construction
5. Small size, can be embedded in the user's device.
Specification
DVI version: DVI 1.0/1.1 DVI-D
HDCP: HDCP1.4
TMDS: 0.5-1.5Vp-p(TTL)
DDC: 5Vp-p(TTL)
Connector: DVI 24+1 Male
MAX. resolution: 4096x2160@30Hz (4:4:4)
Video color format: 4K30Hz RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Audio format: DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
Optical
Optical Connector: 1 x LC (Bi-directional)
Wave length 1310nm/1550nm
Distance: 1 Kilometers (Single-Mode fiber)
Transmitter Power: >-3db
Receiver Sensitivity:<-10db Date Rate: 10Gbps
Physical

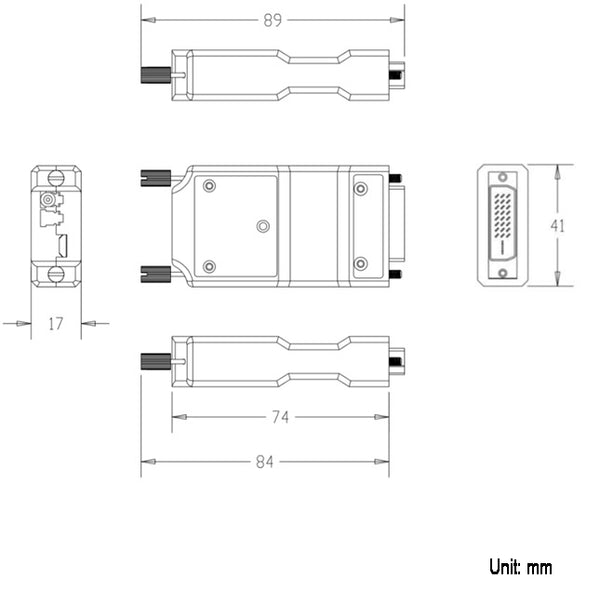

Size (L× W ×H): 89 x 41 x 17 mm
Case: Zine-alloy
Color: Black
N.W. 0.3Kg
Power
Voltage: 5V DC 3.5 x1.35mm
sender power consumption: <1.5W
receiver power consumption: <1.5W
Environment
Working temperature: -20℃-70℃
Storage temperature: -40-85℃
Humidity: 0-95% (non-condensing)
Application
The device can be widely used in broadcast ,military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
Package Includes:
1). 1 x Transmiter
2). 1 x Receiver
3). DC 5V Power supply with US/EU/UK/AU type
4). 1 x Manual
