Features
- Independent 8/4 Channels (optional) Bi-directional (2 way) Dry Contact Closure over 1 fiber
- Multi-mode Fiber Support for Distances up to 2 km, Single-Mode Fiber Support for Distances up to 20 km
- LED Status Provide Rapid Indication of Operating Parameters; hot Plug & Play designing ensures adjustment-free installation and operation
- No EMI or RFI and no ground loops
- Stand alone or rack-mount; Support Point-to-Point or Daisy-Chain connection
- With Hot Pluggable SFP which is changable for longer distance if necessary.
Description:

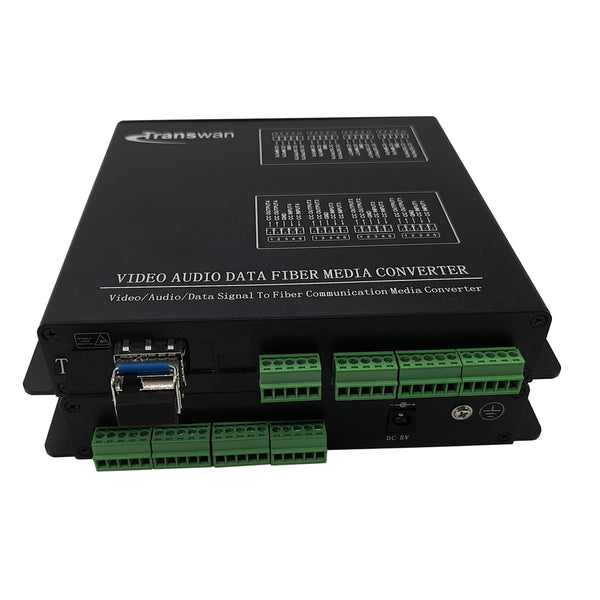

BY-DATA-8/4KK-LC Contact Closure over Fiber Extender series support 8/4 Channels Bi-directional (2 way) contact closure over one multi-mode or single-mode optical fiber. it is typically used in applications with Access Control System, Alarm Event Triggering, Building Automation and Environmental Control Systems, Fire & Alarm Systems, PIR signal Transmission, Traffic Signal Control Equipment etc
Optical:
Wavelength: 1310/1550 nm
Output Power: -14~ -8 dBm
Optic fiber: 50/125u multi-mode，62.5/125u multi-mode，9/125u single mode
Rx sensitivity: -30 dBm
Optical connector: 1 x LC SFP
Distance: 2 Km (MMF) / 20 Km (SMF), SFP can be Changed for Longer Distance if Necessary.
Contact Closure:
Data Formats: Contact Closure
Channel Numbers: Transmitter 8 Ch Input, 8 Ch Ouput
Receiver 8 Ch Output, 8 Ch Input
Data Rate: DC to 200Kbps
Response Time: 2 ms
Relay/Contact Rating: 0.5 A @ 200 VDC
Bit Error Rate: < 10E-9
Connector: Standard Terminal Blocks
Signal input: Passive Dry Contact Closure
Signal output: Relay Output
Electrical & Mechanical:
Input Power Requirements: DC 5V@2A
Power Adapter: AC 90V~240V
Power Consumption: < 5W

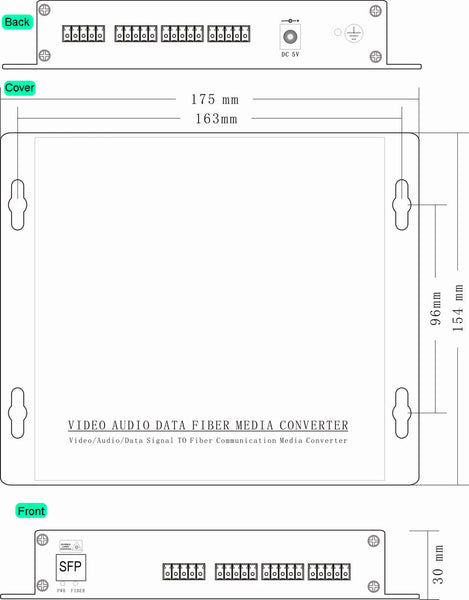

Stand-Alone Dimensions: 175 mm×154 mm×30 mm, 104 mm x 104 mm x 28 mm
Shipping Weight: (include Transmitter & Receiver ) 1.5kg
Environmental:
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours
Package:
1. 1 x transmitter with SFP module.
2. 1 x receiver with SFP module
3. 2 x Power Supply Adapters
4. 1 x Manual
