Overview
This unit transmits and receives 4-channel SDI signals bi-directionally over a single fiber pair using CWDM technology (1270–1610nm). Each color-coded unit converts signals to a unique wavelength, allowing multiple color units to be daisy-chained for simplified signal aggregation and long-distance transport.
Key Features
- Support 4-Ch BIDI 3G-SDI Video cascading fiber transmission
- Support Neutrik PowerCom power connector
- Max cascade capacity 4 boxes
- Handle all Pathological patterns
- 3G-SDI Video: Support SMPTE-424M 3Gbps HD-SDI、SMPTE-292M HD-SDI、SMPTE-259M SDI，SD,HD,3G input auto identification，Support three data
ate 270Mbit/s-1.48Gbit/s-3Gbit/s; support 1080P 3Gbps HD-SDI format - Support O-10Km on single Mode Fiber transmission
- 1260~1610nm CWDM wavelengths optional.

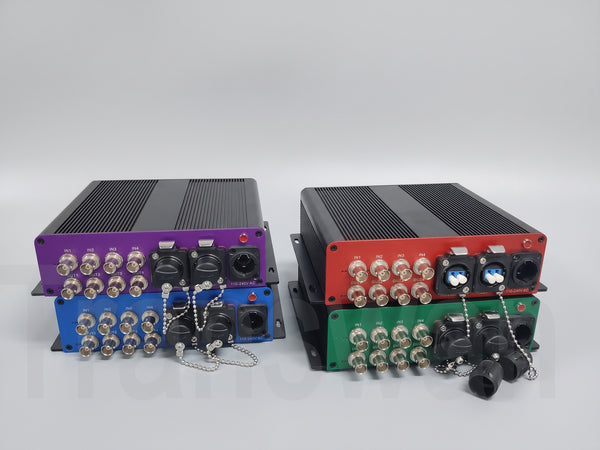

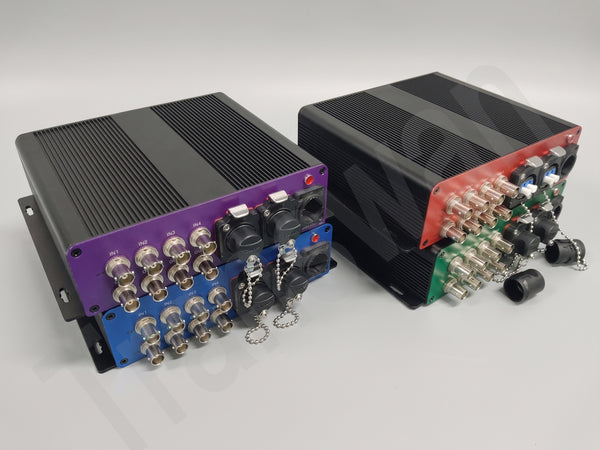

- Blue, Red, Green, Purple etc enclosure color optional
Specification
SDI Interfaces： 4x BNC Inputs, 4x BNC Outputs
SDI Standards： SMPTE 259M, 292M, 372M, 424M, DVB-ASI
Data Rates： Multirate reclocking from 270 Mbps to 3 Gbps
Fiber Ports: Neutrik OpticalCON DUO (CASCADE, PEERS)
Optical Wavelengths: CWDM (1270 nm – 1610 nm)
Optical Power: -5~0dBm
Rx Sensitivity: -18~0dBm
Transmission Distance: Up to 5 km (cascade chain limit) / 10+ km (point-to-point 3G-SDI)
Power Supply: AC 100 – 240V
Neutrik powerCON Connector
Power Consumption 15 W
Dimensions (W x D x H) 168 x 133 x 46 mm
Case Material: Aluminum Alloy
Weight 2.4 kg/pair
Enclosure Options
Color-coded chassis (Blue, Red, Green, Purple etc.)
Working Temperature: -20°C to 55°C
Storage Temperature: -20°C to 70 °C
Connection Guide & Topology
- Point-to-Point Link: Connect the PEERS fiber port of Unit A to the PEERS fiber port of Unit B across the main fiber trunk.

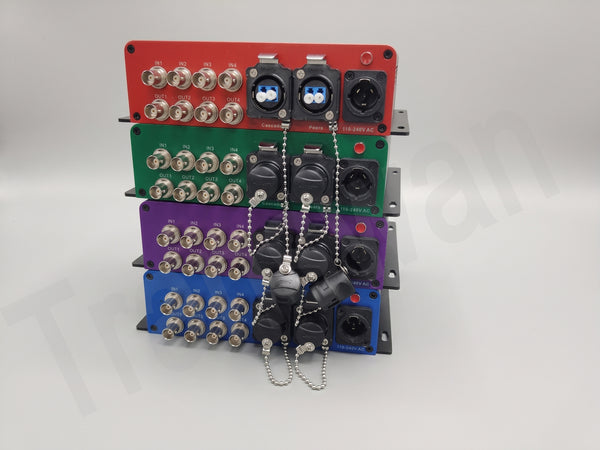

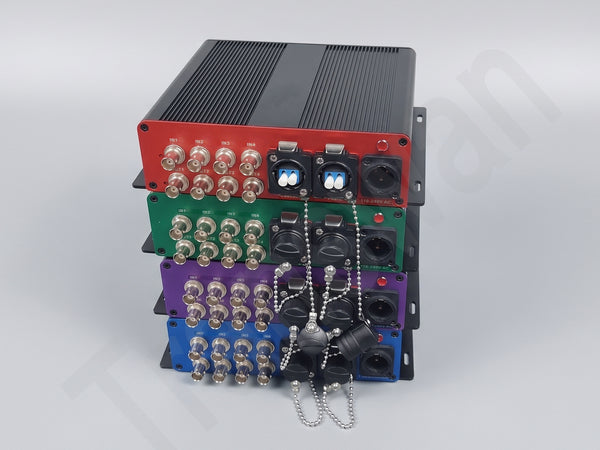

- Cascading Multiple Units: Connect the CASCADE port of the first unit to the PEERS port of the next adjacent color unit in the chain.
- Color Order: You do not need to follow a strict color sequence when connecting units. The diagram printed on top of the device provides visual layout guidance.
Package Includes
- 4-Channel 3G-SDI Bidirectional Fiber Extender Unit (1 x Tx + 1 x Rx)
- 1x Quick Start Guide / Connection Diagram
Connection Diagram:
