ROV Optic Module Micro 12G-SDI Over Fiber Extender to 10 Km Fiber Supports 4K UHD P60 Format

ROV Optic Module Micro 12G-SDI Over Fiber Extender to 10 Km Fiber Supports 4K UHD P60 Format

Transwan

$1,290.00

配送料は購入手続き時に計算されます。
Set
Introduction:
The Role of the 12G-SDI Optic Module
In an ROV, the primary challenge is transmitting extremely high-quality video and data from the vehicle (subsea) over a long umbilical or tether to the surface control station. Copper cable has limitations in distance, is susceptible to noise, and is heavy.

A 12G-SDI Optical Module solves this by converting the electrical 12G-SDI signal (which carries ultra-high-definition video like 4Kp60/8Kp30) into a digital optical signal (light) that can be transmitted over a single, lightweight fiber optic strand within the tether.

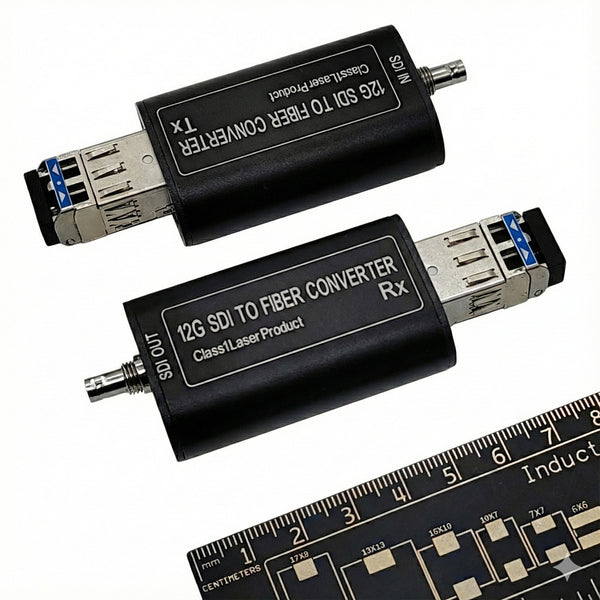

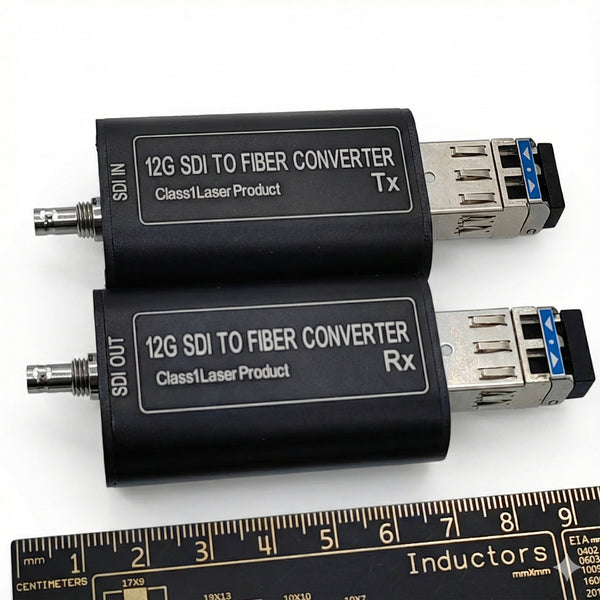

BY-SDI-102 with Micro Size is suitable to install in the ROV Tube.



Features:

  • Micro Size for Easily Installing ROV Tube
  • 1 Channel video and audio transmission of UHDTV/8K/4K/HDTV/SDTV SDI signal over optic fiber; Mini size: 88.9 x 32.8 x 17.8 mm
  • Handles pathological pattern;Supports SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI
  • With integrated reclocker 270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
  • Automatic cable equalization to ensure signal integrity.
  • Long transmission capability at least 500 Meters (Multi-mode fiber)/10 Kilometers (Single-mode fiber); with 12G/6G/3G/HD/SD-SDI SFP optical Module

Description:

BY-SDI-102 is a broadcast-quality converter/extender that sends 12G/6G/3G/HD/SD-SDI up to 6.2 miles over singlemode fiber with embedded audio.

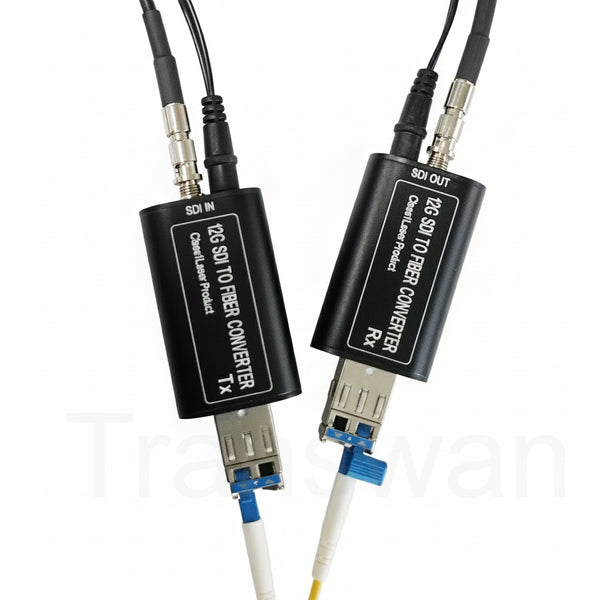

The BY-SDI-102 over fiber extender with 12G SDI SFP provides instant fiber connectivity. Designed for professional broadcast use in video production and editing, this transmission system features automatic equalizing and reclocking and an SDI loop out on the transmitter.

Specifications:
SDI input/output:
Signal format:SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI
Data rate:270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
Cable Equalization:
Automatic cable EQ (Belden 1694A cable)
75 m at 11.88 Gbps (4Kp60 UHD)
120 m at 5.94 Gbps (UHD)
200 m at 2.97 Gbps (FHD)
280 m at 1.485 Gbps (HD)
600 m at 270 Mbps (SD)
SDI interface: Mini BNC 75 Ohm
Fiber interface: 1 x LC/PC
Number of transmitter channel:1 Ch
Transmitter wavelength:1310 nm
Transmitter output power:-6~-1dBm
Number of receiver output:1
Receiver sensitivity:-14.4dBm～-1dBm
General index:
Input power:DC 5 V or 12V
Power consumption:less 3W
Work Temp:-20°C to 70°C
Storage Temp:-40°C to 85°C
humidity:0 ~ 95% (non-condensing)
Case material:Aluminum

Size: 88.9 x 32.8 x 17.8 mm
Net weight:210g /pair （with Power supply 340g/pair）

Package contains:
1. 1 x transmitter with 12G SDI SFP  module.
2. 1 x receiver with 12G SDI SFP module.
3. 2 x Power supply adapters with US/EU/UK/AU plug .
