- 2 Channels Line-Level (not Mic-Level) balanced audio fiber optic extender with XLR ports (female to male) 20 Km on SMF or 500 meters on MMF
- Supports 16-bit digitally encoded broadcast quality balanced audio;Easy stand-alone or rack-mount installation.
- Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required;
- LED indicators are provided to instantly monitor the system operating status.

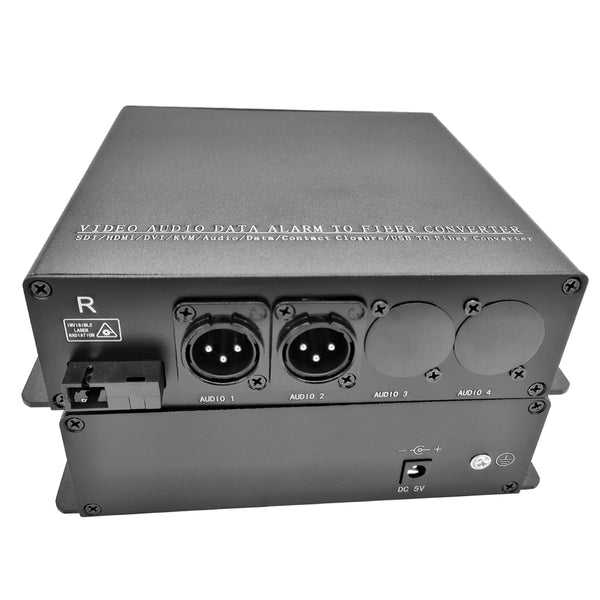

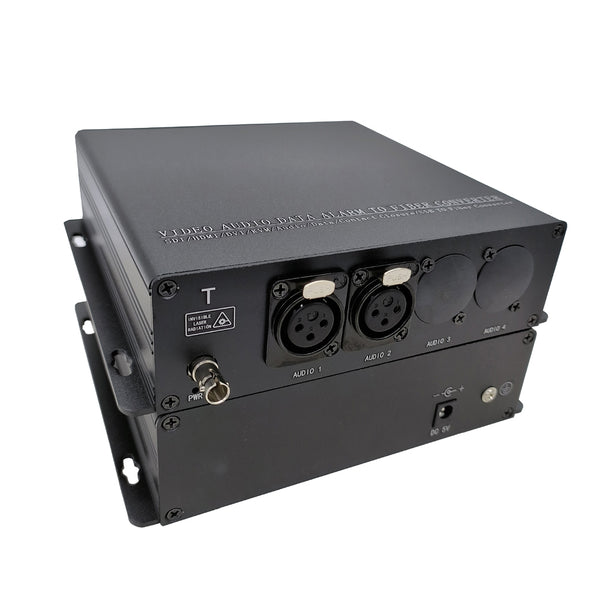

BY-XLR-349 includes optical transmitter and receiver, it enables 2 Channels balanced audio over optical fiber for extreme long distance.
Output Power: -14~ -8dBm
Supported Optic fiber: 50/125u multimode，62.5/125u multimode，9/125u single mode
Rx sensitivity: -30dBm
Optical connector: 1 x ST, 1 x SC, 1 x LC, 1 x FC available

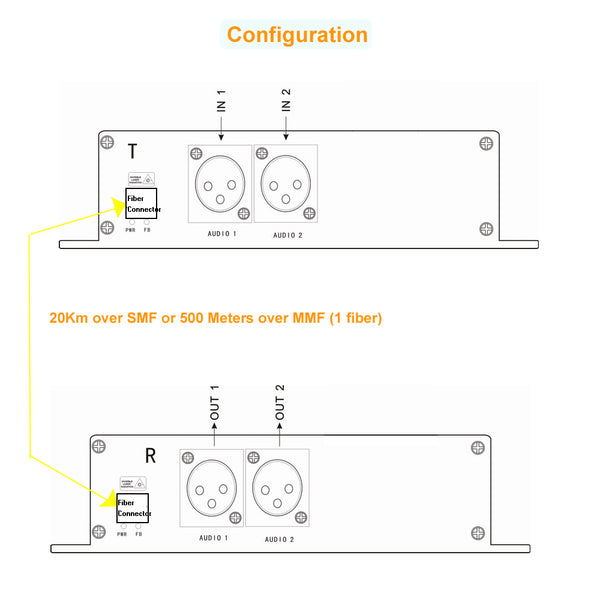

Distance: 0~500 Meters (MMF) / 0~20 Kilometers (SMF)
Number of Channels: 2
Input Connector: XLR（female）
Output Connector: XLR（male）
Input / Output Impedance: 10K Ohm
Input capacitance LINE inputs: 10 pF
Max input/output voltage: +4 dBu (1.228 Volts). if over the limit, the audio distortion will appear.
Frequency Response: 20 Hz～24kHz @±3dB
Sample Rates From: 48kHz
Electrical & Mechanical:
Input Power Requirements: DC 5V@2A
Power Adapter: AC 90V~240V
Power Consumption: < 5W

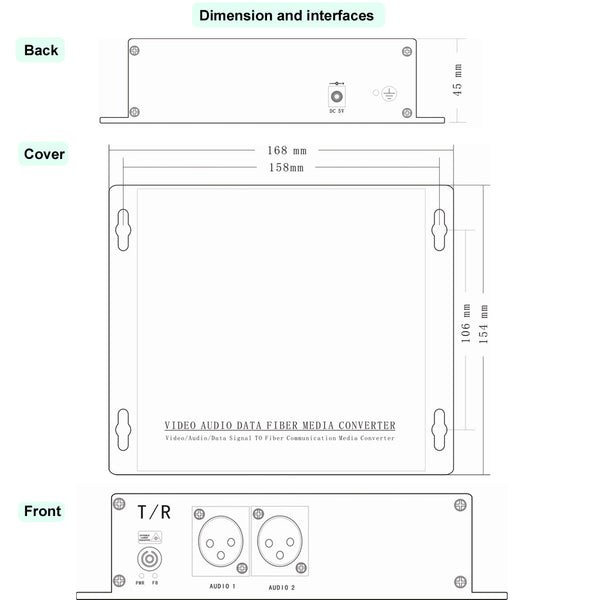

Stand-Alone Dimensions: 168mm × 154mm × 45mm
Shipping Weight: (include Transmitter & Receiver ) 2.5kg
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours

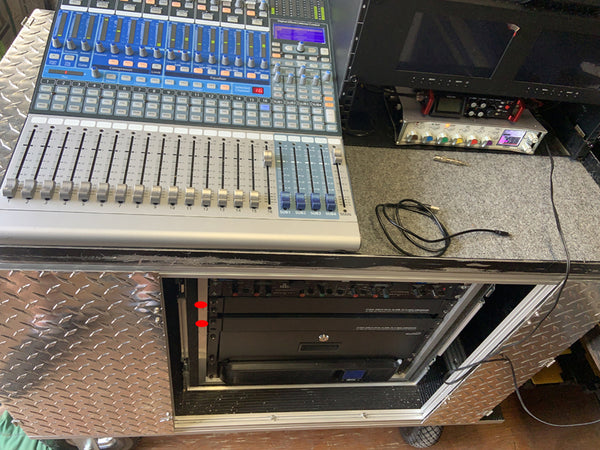

Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV etc
1. 1 x transmitter with optical module.
2. 1 x receiver with optical module.
3. 2 x Power Supply Adapter with US/EU/UK/AU plug..
Once order received, we will worldwide deliver by DHL Express for about 1 week delivery.
BY-XLR-349 (2 Ch over 1 fiber)
