Genlock signal over Optic Fiber Extender, CVBS/ BB/ Tri-Level over Fiber Extender

Posted by Chou Joseph on

Solution 1:

Genlock singal over Optic Fiber Extender, 480i black-burst signal with 720p & 1080i Tri-Level signals over Optic Fiber Extender,

the Customized Mini Size........for more, please feel freely to contact, Order the standard BY-Genlock-102BNC now

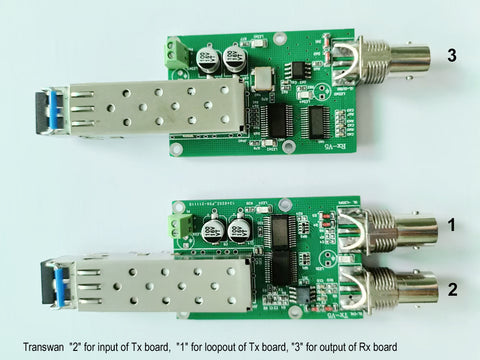

Genlock over Optic Fiber

Solution 2:

2x Genlock out at the RX. Both outputs need an indicator light as soon as a stable connection is in place (blue light). TX and RX need an indicator light with orange if the mode is blackburst and green if the mode is tri Level.

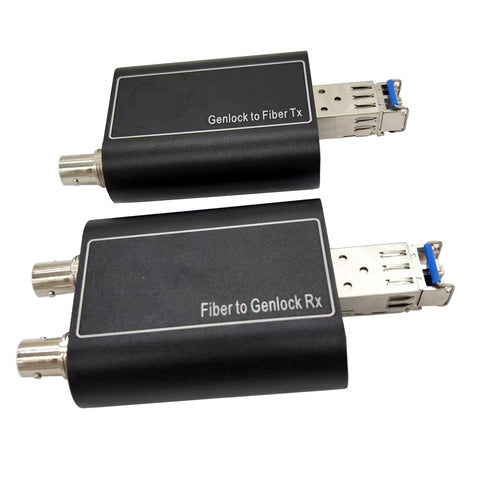

Genlock to Fiber Extender
the Customized Mini Size........for more, please feel freely to contact
Order the standard BY-Genlock-102BNC now
