This broadcast-grade system is primarily used where uncompressed, zero-latency high-definition video needs to be transported over long distances (typically 10km via Single-Mode Fiber) without degradation or electromagnetic interference.
-
Outside Broadcasting (OB Vans) & Mobile Production: Allows production trucks to interface directly with field cameras, field monitors, and production switchers located kilometers away.
-
Live Event & Concert Production: Transmits multi-camera setups from the stage to the front-of-house (FOH) or broadcast control room while simultaneously sending return feeds (e.g., director monitors, teleprompter feeds, or return program video) back to the stage.
-
TV Studio & Remote Production (REMI): Connects remote studios, newsrooms, or control rooms across different floors, buildings, or campus facilities.
-
4K / UHD Video Transmission: Because it features 8 individual 3G-SDI channels, it can be combined to transmit up to two independent 4K/UHD streams at 60fps (using Quadrant 4-link 3G-SDI mapping) or up to four 4K streams at 30fps.
- Command & Control Centers / Military: Used in secure environments for flicker-free, real-time uncompressed video monitoring over vast distances.
Features:
- Support for 4/8 Ch 2 Way (Bidi) independent 3G/HD/SD-SDI channels over 1 Core Single-mode Fiber 10+Km, Pass All Pathological Patterns.
- Complait with SMPTE Standards: SMPTE ST 425-3, ST 425-5, 259M-2006, 292-2006, 424M-2006, SMPTE 305M-2005, 310M-2004, 344M-2000
- BMD SDI Devices Compatible
- CWDM optical multiplexing technology, Each SDI signal has its own laser and its beeing convert to the different optical wavelength.
- Each Channel supports SMPTE standard of SDTV (143-540Mbps), HDTV (1.485Gbps) and HDTV (3Gbps, 1080p60). Each channel SDI individually re-clocked input and individually re-clocked SDI output
- Embedded audio / data support for each channel.
- LED indicators for channel activity and power
- SMPTE 3K93C Connector Optional
SPECIFICATION
Each Ch SDI input/output:
Signal format:SMPTE 424M, SMPTE 292M, SMPTE 259M
Each Ch Data rate:270Mbit/s - 1.48Gbit/s - 3Gbit/s
Cable Equalization Automatic cable EQ (Belden 1694A cable):
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
SDI interface:BNC 75 Ohm
Number of receiver output: 8 Ch in, 8 Ch Out
Number of tranmitter channel: 8 Ch Out, 8 Ch In
Fiber interface:1 x LC (default), 1 x FC, 1 x ST, 1 x SC, SMPTE Hybrid 3K93C Connector Optional
Transmitter wavelength: 16 x CWDM wavelength selected from 1270, 1290, 1310, 1330, 1350, 1390, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610nm
Support Fiber Cable Types: Single-mode Optical Fiber
Optical Source: DFB Laser Module - CWDM
Transmitter output power: -5~0dBm
Receiver sensitivity:-18dBm dBm
Dimension of Tx/Rx: 19" 1U rack mount (480 x 250 x 50 mm)
Gross.W: 10 Kg
Power Supply: AC 85-260V/50Hz
Working Temperature: 0 ℃~+85 ℃ ;
Relative Humidity: 0 ~ 95%
Package
1. 1 x BY-SDI-394 transmitter 2. 1 x BY-SDI-394 receiver
-
Gigabit Ethernet (IP Data Extender): Integrates a 10/100/1000M RJ45 network port to extend internet, PC LAN data, or IP control for PTZ cameras over the same fiber line.
-
Bi-directional Data (RS-422 / RS-485 / RS-232): Frequently used for legacy camera tally control or remote PTZ camera joystick commands.
-
Intercom Balanced XLR Audio: Dedicated analog audio inputs/outputs for intercom systems or engineer talkback channels.
- Genlock (BB / Tri-level Sync): Essential for synchronization between the main studio clock and remote cameras.
About shipment
Once order received, we will worldwide deliver by DHL Express for about 1 week delivery.
Or shop on Amazon with worldwide Shipment (Free & Expedited)

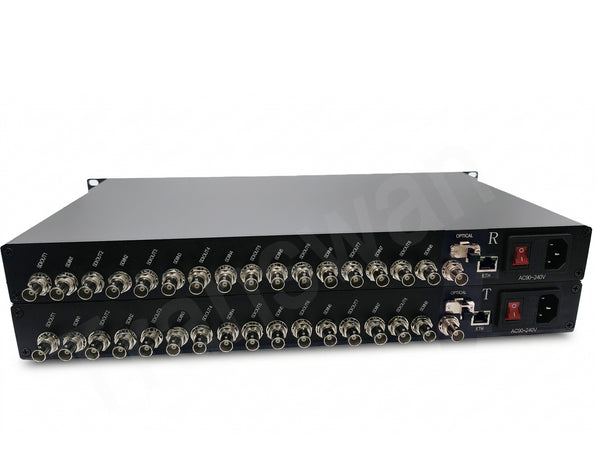

BY-SDI-394 (8 Ch 2 Way 3G-SDI over 1 fiber)
BY-SDI-394 (8 Ch 2 Way 3G-SDI over 1 fiber)
BY-SDI-394 (8 Ch 2 Way 3G-SDI over Fiber)
or Directly Contact us at sales@transwan.com.cn for offline transaction.
