1 Ch 3G-SDI (Forward) & 1 Ch RS 485 Data (Reverse) Over Optical Fiber with 3G SDI SFP,10 Kilometers

Transwan

Regular price $899.00

Set

Features:

  • 1 Ch 3G/HD-SDI video (Forward: from Transmitter to Receiver) & 1 Ch RS 485 data (Reverse: from Receiver to Transmitter) over Single-mode Fiber
  • Handles all pathological patterns
  • Automatic cable equalization to ensure signal integrity
  • Support signal type: 270Mbit/s to 3Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M standards
  • Long transmission capability at least 10 Kilometers; LED indicators are provided for instantly monitoring system status

Description:

BY-SDI-280 SDI perfectly converts electrical SDI signal to single mode optic SDI signal. It supports transmission image of SDTV (143-540Mbps), HDTV (1.485Gbps) and HDTV (3Gbps, 1080p60). Both transmitter and receiver provide equalizing and reclocking at input unit in order to re-construct the signal for consistent quality.
Specification
Optical:
Wavelength: 1490nm for SDI & 1310 / 1550nm for RS485
Transmitter Coupled Power: -5~0dBm for SDI, -3~-9 for RS485
Receiver Sensitivity:< -18dbm for SDI, < -24dbm for RS485
Receiver saturation:more 0dbm
Optical Link Budget: > 15db for SDI
Optic fiber:9/125u single mode
Rx sensitivity:-18dBm
Optical connector:1 x LC
Distance: 10 Kilometers (SMF)
RS 485 Data:
Data protocol: RS 485
Data rate:0~200 Kbps
Pulse distortion and jitter of data:less +/-3us over full dynamic range
Error rate:less 10-9
Connector: Standard terminal lead
Number of Channel:1 Ch
Direction: Reverse
Video:
SDI Input:
Signal Type SDI:SMPTE 424M, SMPTE 292M, SMPTE 259M
Data Rates:270Mbit/s - 1.48Gbit/s - 3Gbit/s
Connector:1 BNC
Impedance:75 Ohm
Number of Channel: 1 Ch
Direction: Forward
General:
Input Power:5~24V DC
Power consumption:<6W
Operating temperature:-26°C to 70°C
Storage temperature:-40°C to 85°C
Operating humidity:0 ~ 95% (non-condensing)
Net Weight:less 1.5KG per pair

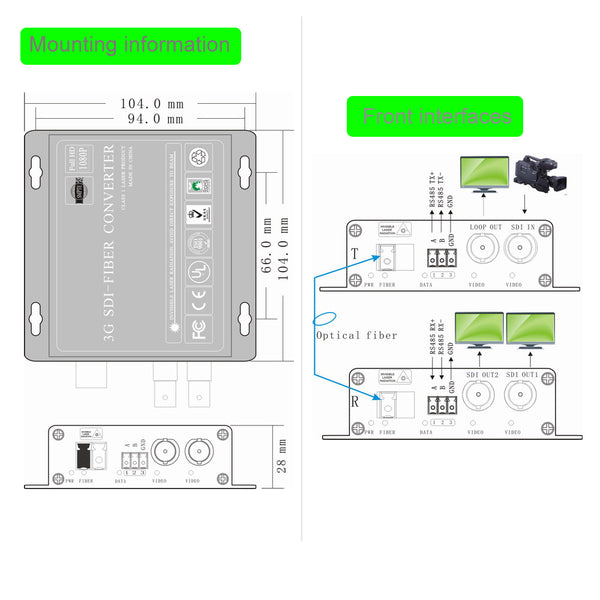

Dimension:104 mm×104 x 28 mm

Note: if adding more Channels 3G SDI & data or changing Data to RS422/RS 232, please contact us freely, we can design the customized boards in short time.
Package:
1. 1 x BY-SDI-280 Transmitter with SFP module
2. 1 x BY-SDI-280 Receiver with SFP module
3. 2 x Power Supply Adapters with US/EU/UK/AU plug
4. 1 x Manul
