Features:
- Support for 4/8 Ch 2 Way (Bidi) independent 3G/HD/SD-SDI channels over 1 Core Single-mode Fiber 10+Km, Pass All Pathological Patterns.
- Complait with SMPTE Standards: SMPTE ST 425-3, ST 425-5, 259M-2006, 292-2006, 424M-2006, SMPTE 305M-2005, 310M-2004, 344M-2000
- CWDM optical multiplexing technology, Each SDI signal has its own laser and its beeing convert to the different optical wavelength.
- Each Channel supports SMPTE standard of SDTV (143-540Mbps), HDTV (1.485Gbps) and HDTV (3Gbps, 1080p60). Each channel SDI individually re-clocked input and individually re-clocked SDI output
- Embedded audio / data support for each channel.
- LED indicators for channel activity and power

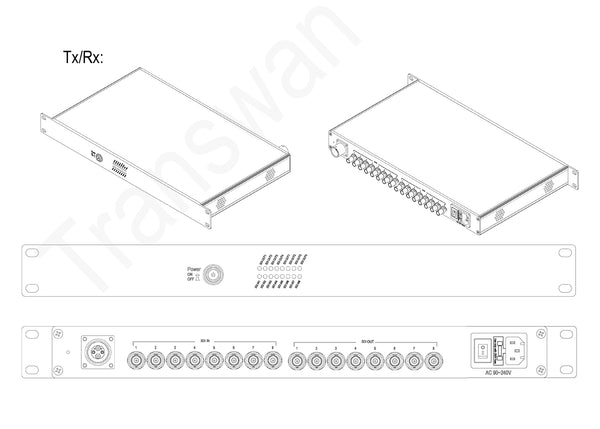

- SMPTE 3K93C Connector Optional
Description:
BY-SDI-394 is a self contained fiber transmission kit for the transporting 4/8 Ch Bidi 3G SDI signals over one (1) single fiber link. The kit includes the fiber transmitter, fiber receiver and power supplies. This is an ideal solution for the transmission of multiple uncompressed SDI streams to 10km with zero singla losses.
SPECIFICATION
Each Ch SDI input/output:
Signal format:SMPTE 424M, SMPTE 292M, SMPTE 259M
Each Ch Data rate:270Mbit/s - 1.48Gbit/s - 3Gbit/s
Cable Equalization Automatic cable EQ (Belden 1694A cable):
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
SDI interface:BNC 75 Ohm
Number of receiver output: 8 Ch in, 8 Ch Out
Number of tranmitter channel: 8 Ch Out, 8 Ch In
Fiber interface:1 x LC (default), 1 x FC, 1 x ST, 1 x SC, SMPTE Hybrid 3K93C Connector Optional
Transmitter wavelength: 16 x CWDM wavelength selected from 1270, 1290, 1310, 1330, 1350, 1390, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610nm
Support Fiber Cable Types: Single-mode Optical Fiber
Optical Source: DFB Laser Module - CWDM
Transmitter output power: -5~0dBm
Receiver sensitivity:-18dBm dBm

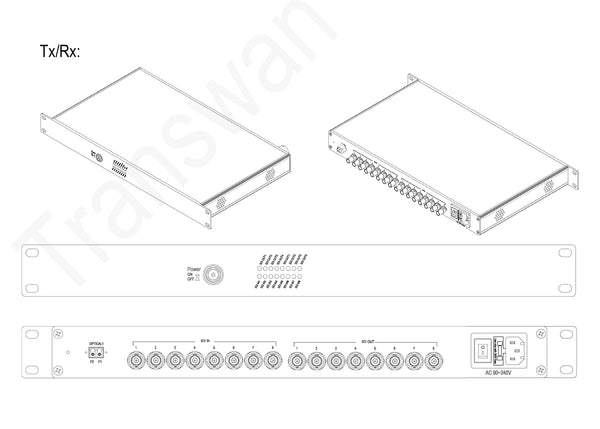

Dimension of Tx/Rx: 19" 1U rack mount (480 x 250 x 50 mm)
Gross.W: 10 Kg
Power Supply: AC 85-260V/50Hz
Working Temperature: 0 ℃~+85 ℃ ;
Relative Humidity: 0 ~ 95%
Application:
Television studio, mobile studio
EFP Electronic Field Production, major sporting events and large celebrations broadcast live
ENG camera (outdoor photo camcorders) upgraded to a EFP camera.
OB Van
Package
1. 1 x BY-SDI-394 transmitter 2. 1 x BY-SDI-394 receiver
About shipment
Once order received, we will worldwide deliver by DHL Express for about 1 week delivery.
Or shop on Amazon with worldwide Shipment (Free & Expedited)

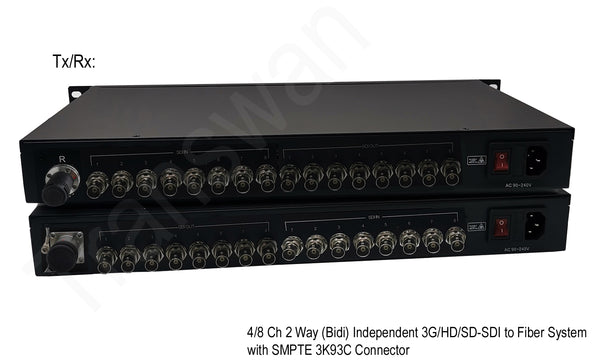

BY-SDI-394 (8 Ch 2 Way 3G-SDI over 1 fiber)
