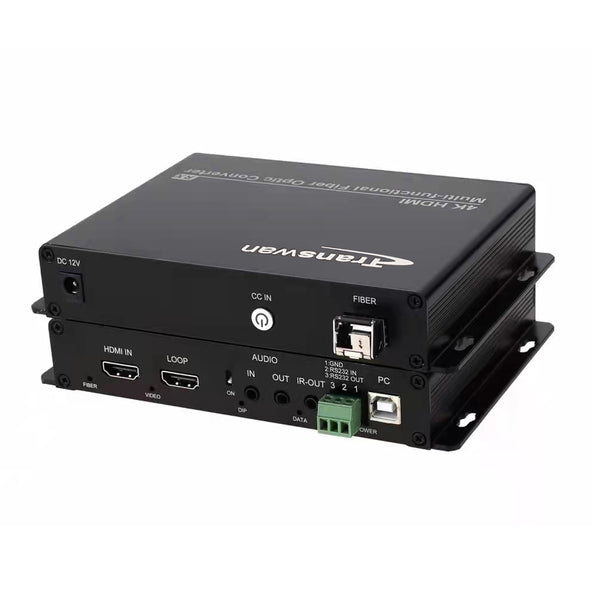

4K HDMI Multi-function Fiber Optical Converter
1 channel 4K HDMI video with loop-out + 1 channel bidirectional 3.5 audio+ 1 channel reverse IR + 1 channel bidirectional RS232 data + and USB port for Keyboard & Mouse. The video, audio and data output from the computer host (HD video signal source, HD DVD/DVR and other devices) are extended to the remote user through one core optical fiber, and the image and sound of the computer host are broadcasted in real time at the remote end.
Features:
- Maximum support 4096*2160@30Hz, be backward compatible
- Support HDCP 1.4 and EDID
- Support RGB4:4:4 YUV4:4:4 4:2:2 4:2:0
- Support DDC CEC HPD signal
- Support 4K HDMI video with loop-out
- Support KVM function (keyboard and mouse)
- Support 1 channel reverse IR infrared transmission
- Support 1 channel bidirectional independent 3.5 stereo audio, forward support audio embedding / unembedding function
- Support 1 channel bidirectional full-duplex RS232
- 10KM over Dual or Single Single-mode Fiber.
- with SFP module, plug and play, no software drivers needed.
Specs
Optics
Wavelength: 1310-1550nm
Bit rate: 10Gbps
Tx power: ＞-5db
Rx sensitivity: ＞-14db
Fiber connector: 1 x LC, 2 x LC optional
Video
Video bandwidth: 10Gbps
Maximum resolution: 4096*2160@30Hz backward compatible
Maximum pixel clock: 297MHZ
Effective cable length: 10Meters
Physical interface: HDMI female
KVM(USB) for Keyboard and Mouse.
USB Version: 1.1
Tx physical interface: USB female type B
Rx physical interface: USB female type A
Audio
Sampling frequency: 48K
Sampling depth: 24bit
Dynamic bandwidth: 96db
Total harmonical distortion (THD): -88db
Signal to noise ratio（SNR): 96db
Audio input/output impedance: 600Ω
Signal level: VPP 3.5V
Physical interface: 3.5mm stereo audio socket
Signal type: stereo audio
IR
Optical current: 200~1030ｕA (Condition: IF=4mA,VCE=3.5V)
Peak wavelength: 940nm (Condition: 1F=20mA)
Spectrum voltage: 80nm (Condition: 1F=20mA)
View angle: ±30Deg (Condition: 1F=20mA)
Forward voltage: 1.2~1.6V (Condition: 1F=20mA)
Reverse current: 10ｕA (Condition: VR=5V)
RS232 (3-wire system, full duplex) index
Baud rate ： 256000Hz downward compatibility
Data bits： 8 digits
Physical interface： 3-pin phoenix terminal
Mechanical
Dimensions: 172 mm x 150 mm x 115 mm
Weight: 700g per pair
Power Source
Input: 100~240VAC / 50-60Hz
Output: 12V1A
Environmental
Operating Temperature:0° to +50° C
Storage Temperature:-20° to +70° C
Humidity (storage / operating):10% to 90% (non-condensing)
Package:
1. 1 x transmitter with SFP module.
2. 1 x receiver with SFP module.
3. 2 x Power supply Adapters with US/EU/UK/AU plug
4. 1 x Manual.
Shipment:
Once order received, we will worldwide deliver by DHL Express for about 1 week delivery.
