Features:
- Support HDMI interface; Support USB (keyboard & mouse) and IR signal
- Support 1920×1080 @ 60Hz
- Single (1 core) fiber transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
- Max extension distance 2 Kilometers (MM fiber) / 20 Kilometers (SM fiber)
- Application: a). Remote monitoring, traffic management b). Broadcast Studio Camera Feeds c). Long-Haul signal Transport d). TV station/video conference e). Lecture Hall Projector Connectivity f). Medical/Surgical Room Broadcast g). Small corporate campus video links h). Building to Building video conference calling
Description:

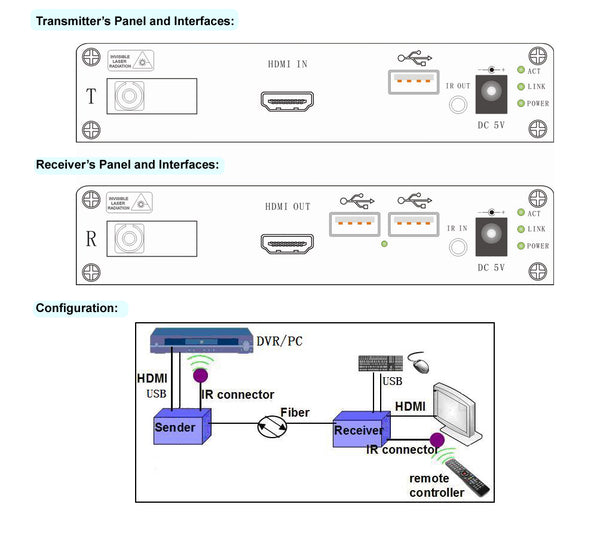

BY-KVM-313SF includes a transmitter and a receiver, which can extend HDMI and USB(keyboard & mouse), and IR signal to a remote location over 1 fiber cable.
The device supports HDMI / DVI transmission at real-time, max resolution supports can reach 1920*1080 @ 60Hz,
The distance 2 kilometers over Multi-mode Fiber or 20 Kilometers over Single-mode Fiber
Video:
I/O connector: HDMI / DVI
HDMI version: HDMI1.1 1.2 1.3
HDCP: HDCP1.2
HDMI resolution: 1080p/1080i/720p/720i/576p/576i/480p/480i
Video color format: 24bit/deep color 30bit/deep color 36bit
Audio format: DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
TMDS: 0.5-1.5Vp-p(TTL)
DDC: 5Vp-p(TTL)
Input cable length: ≤20m AWG26 HDMI 1.3 standard cable
Output cable length: ≤20m AWG26 HDMI 1.3 standard cable
Optical:
Fiber Connector: 1 x SC
Wavelength: 1310nm laser
Physical:
Size (L× W ×H): 157 x 81 x 29mm
Case: Aluminum
Color: Black
N.W.: 0.75Kg
Power Voltage: 5~12V DC
power consumption: 3.5W at Tx side, 3.5W at Rx side
Environment:
Working temperature: -20℃-70℃
Storage temperature: -40-85℃
Humidity: 0-95% (non-condensing)
IR（Infrared remote control）：
Frequency: 38KHz
Wavelength: 940nm
Connector at Tx unit: 3.5mm Unbalanced stereo audio block， 2 PIN
Connector at Rx unit: 3.5mm Unbalanced stereo audio block， 3 PIN
USB interface:
TX: 1，connect to DVR / PC (personal computer)
RX: 2, connect to Cable keyboard & mouse
USB Port Version: 1.1
Package:
1. 1 x transmitter with optical module.
2. 1 x receiver with optical module.
3. 2 x Power supply adapters DC 5~12 V with US/EU/UK/AU plug.
4. 1 x Manual.
