Mini USB 3.0 Fiber Extender to Max 250 Meters over Single-mode Fiber w/ SFP module, Support 5Gbps Speed

Transwan

Regular price $299.00

Set
Features
  • Max extension distance 250 Meters (820 FT) over optical fiber cable for USB flash disk, but For real-time live transmission like Kinect devices ,  the Max distance is 150 Meters over Single-mode Fiber. If require over Multi-mode Fiber,  please check BY-USB-912412FM
  • with the Mini Size (88.50 x 32.80 x 17.80 mm, 84.3 x 33 x 17.8 mm )
  • LC fiber connector, pure hardware design, no driver needed.
  • Compatible with  Windows 8, Windows 8.1, Windows 10, Windows 11, full version of the LINUX, UNIX or Mac OS operation systems; support plug and play.
  • Support USB 3.0 Super Speed up to 5 Gbps, but Not backwards compatible with USB 2.0 and USB 1.1; USB 3.0 Type A Receptacle, Supports Full Duplex.

Description:

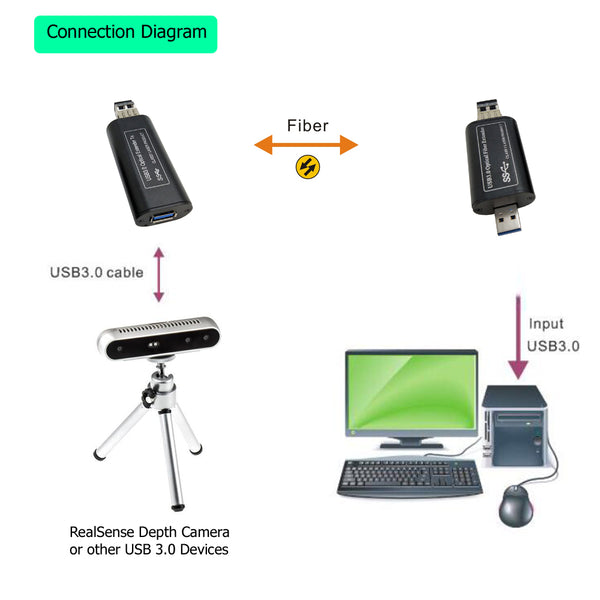

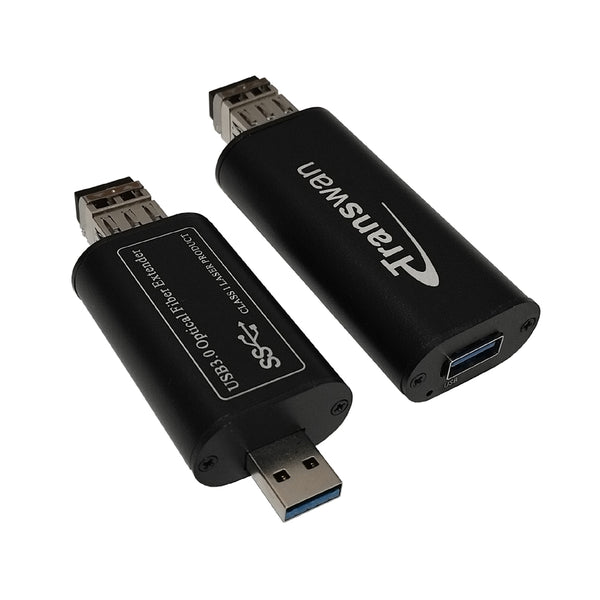

BY-USB-912 includes a transmitter(client-side) and a receiver(host-side), which can extend the Super speed USB 3.0 to a remote location over 1 or 2 core single-mode fiber cable, max distance 250 Meters.

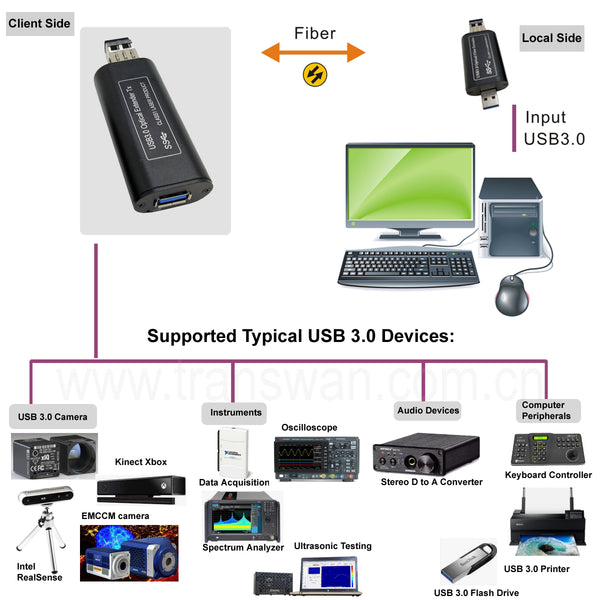

Supported Typical USB 3.0 Devices (the last image):
1). USB 3.0 Camera:
Intel RealSense, XiQ USB 3.0 Camera, Kinect Xbox, Kinect Azure, EMCCM camera etc
2). Instruments:
Data Acquisition, Spectrum Analyzer, Oscilloscope, Ultrasonic Testing, Telescope etc
3). Aduio Device:
Stereo D to A Converter etc
4). Computer Peripherals:
Keyboard Controller, USB 3.0 Printer, USB 3.0 Flash Drive etc
5.) Others

Notice: Touch Monitor like Dell P2418HT, Videobar like Bose VB1 etc, these devices need the USB 3.0/2.0/1.1 backward compatible, they need our compatible version. so this item does not support.

Application:
1.Industrial video transmission
2.USB 3.0 Vision cameras.
3.HD video surveillance system.
4.High - speed data acquisition system.
5.Remote storage.
6.Digital signage and TV wall.
7.Industrial printer system.
8. VA/VR systems.
9. Telescope Sites.

SPECS:
Optical:
Fiber Connector: 2 x LC or  1 x LC  (using Bi-directional SFP module,  one LC port is blind even the image shows 2)
Wavelength: 1310nm (default), 1270~1610nm Optional; 1330nm/1270nm(Bidi)
Support Fiber types:  9/125μm
Physical:

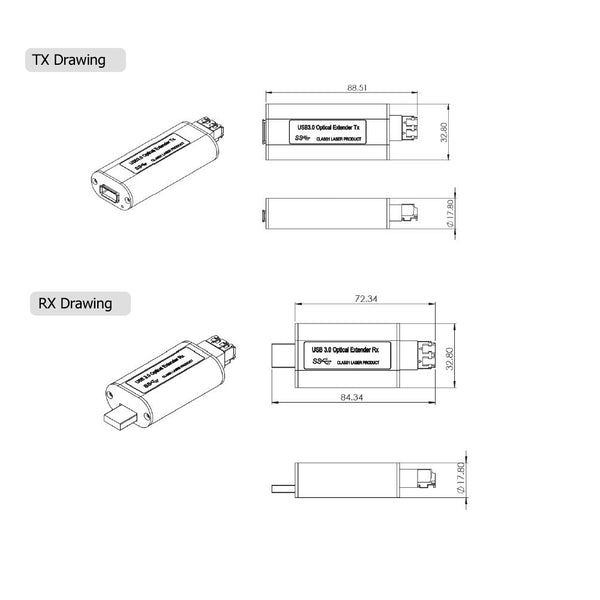

Size (L× W ×H): 1) Transmitter: 88.50 x 32.80 x 17.80 mm ; 2) Receiver: 84.3 x 33 x 17.8 mm
Case Material:Aluminum
Color:Black
N.W.:0.75Kg
Power Voltage: 5V DC
sender power consumption:<10W
receiver power consumption:<5W
Environment:
Working temperature:0℃-50℃
Storage temperature:-40-85℃
Humidity: 0-95% (non-condensing)

Power-up sequence:
Because of USB status (Suspend and Resume), Both the the computer and the USB device it's being connected to should be shut down completely BEFORE making all the connections. The USB devices and the transmitter module it's connected to must both be powered up and running BEFORE the computer is booted up. Otherwise, the USB device's driver in the computer will not be loaded, and the devices will not connect. In case the USB device's driver shows can not Identify the Device or shows "Unknown Device", please unplug and plug the receiver module.

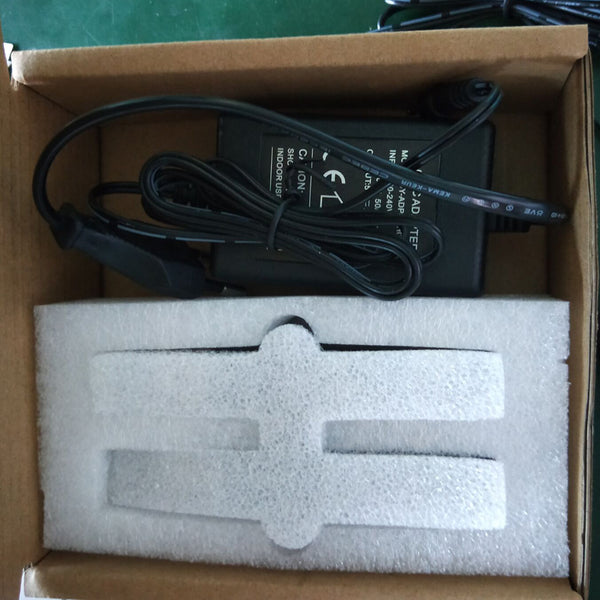

Package:
1. 1 x transmitter (client side) with SFP module.
2. 1 x receiver (host side) with SFP module.
3. 1 x Power Adapter DC 5V with US/UK/AU plug for the transmitter, so the USB 3.0 devices can be powered by it as well if less 900 mA.  the receiver is powered by the host computer.
4. 1 x Manual.
About shipment:
Once order received, we will worldwide deliver within 1~2 days by DHL for 1 week arrival

Or shop on Amazon with worldwide Shipment (Free & Expedited)

BY-USB-912DF (over 2 Fibers)           BY-USB-912SF (over 1 Fiber)



BY-USB-912DF (over 2 fibers)              BY-USB-912SF (over 1 fiber)

or Directly Contact us at sales@transwan.com.cn for offline transaction.
