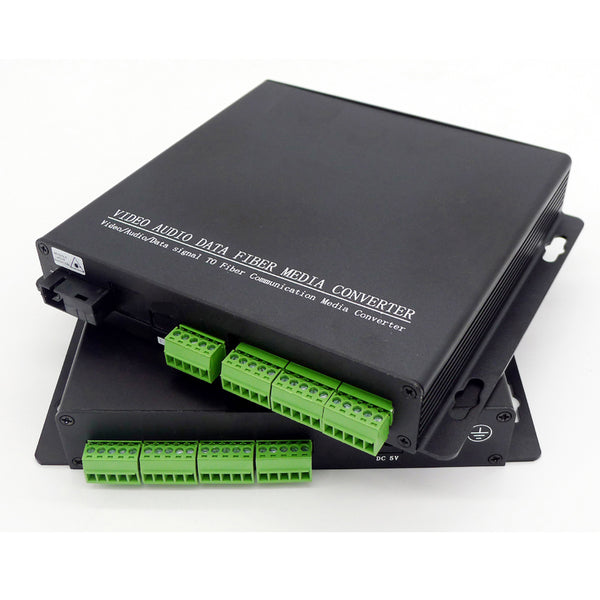

16 Ch Contact Closure over Fiber Extender over 2 Km Multi-mode Fiber or 20 Km Single-mode Fiber

Transwan

Regular price $289.00

Set

Features

  • Independent 16 Channels Unidirectional (1 way) Dry Contact Closure over 1 fiber
  • Multi-mode Fiber Support for Distances up to 2 km, Single-Mode Fiber Support for Distances up to 20 km
  • LED Status Provide Rapid Indication of Operating Parameters; hot Plug & Play designing ensures adjustment-free installation and operation
  • No EMI or RFI and no ground loops
  • Stand alone or rack-mount; Support Point-to-Point or Daisy-Chain connection
  • 1 x FC/ST/SC Fiber connector optional

Description:

Contact Closure over Fiber Extender series support 16 Channels Unidirectional (1 way) contact closure over one multi-mode or single-mode optical fiber. it is typically used in applications with Access Control System, Alarm Event Triggering, Building Automation and Environmental Control Systems, Fire & Alarm Systems, PIR signal Transmission, Traffic Signal Control Equipment etc

Optical:
Wavelength: 1310 nm
Output Power: -14~ -8 dBm
Optic fiber: 50/125u multi-mode,62.5/125u multi-mode,9/125u single mode
Rx sensitivity: -30 dBm
Optical connector: 1 x FC/ST/SC optional

Distance: 2 Km (MMF) / 20 Km (SMF)

Contact Closure:
Data Formats:Contact Closure
Data Rate:DC to 200Kbps
Response Time:2 ms
Relay/Contact Rating:0.5 A @ 200 VDC
Bit Error Rate:< 10E-9
Connector: Standard Terminal Blocks
Signal input: Passive Dry Contact Closure
Signal output: Relay Output

Electrical & Mechanical:
Input Power Requirements: DC 5V@2A
Power Adapter: AC 90V~240V
Power Consumption: < 5W
Stand-Alone Dimensions: 175 mm×154 mm×30 mm
Shipping Weight: (include Transmitter & Receiver ) 1.5kg

Environmental:
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours

Package:
1. 1 x transmitter with optical module.
2. 1 x receiver with optical module
3. 2 x Power Supply Adapters
4. 1 x Manual

About Shipment:
Once order received, we will worldwide deliver by DHL Express for about 1 week delivery.
