Features:
- Input, output AES/EBU digital audio, compatible AES3, S/PDIF
- Automatic Detection of the Input-to-Output Sampling Ratio
- Supports Input and Output Sampling Frequencies Up to 216kHz
- 2-Channel 1 way or 2 ways AES/EBU signal can be transmitted at the same time
- Transmission distance up to 20KM (SMF) or 500 Meter (MMF)
- Stand-alone or rack-mount installations are available. FC, ST or SC optical connectors is optional.
- Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
- Compatible with the AES3/SPDIF, IEC 60958, and EIAJ CP-1201 interface standards
Description:
2 Ch AES/EBU audio over fiber series support 2 Channels AES/EBU digital audio over one multi-mode or single-mode optical fiber. AES/EBU digital audio input and output, compatible AES3,S/PDIF. Accepts synchronous or asynchronous AES/EBU of 44.1KHz or 48KHz sampling frequency. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications etc
Applications:
- Radio Station AES/EBU Signal Transmission
- ENG/EFP Serial Digital Audio Transmission
- AES/EBU digital audio from any SDI video connection Fiber Transmission
- Tape Deck to Digital Audio Tape Transmission
- Pre-production and Post-production Serial Digital Audio Links
Specs
Optics
Wavelength： 1310nm (default) & 1470nm~1610nm
Output Power： -10~ -5dBm (default)/ -5~0dBm
Optic fiber： 50/125u multimode，62.5/125u multimode，9/125u single mode
Rx sensitivity： -25dBm
Optical connector： FC、ST、SC 、LC(optional)
Distance： 0~500M (MM) / 0~20KM (SM) (default), Longer distance optional

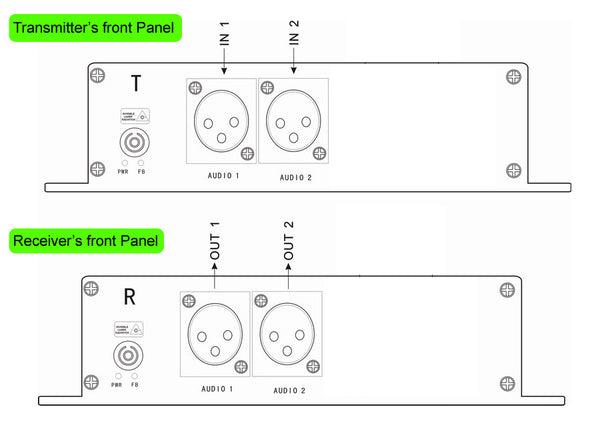

AES/EBU Audio input
Number of Channels: 2 Ch (default), 4 or more
Input Connector: XLR（female）
Standard: AES/EBU under AES3-1992(ANSI S4.40-1992,IEC 958)
Impedance: 110 Ohm”(Balanced)
Max input voltage: 3.3 V
Sampling Frequency: 20KHz~216KHz
AES/EBU Audio output
Number of Channels: 2 Ch (default), 4 or more
Output Connector: XLR(male)
Impedance: 110 Ohm”(Balanced)
Typical output voltage: 3.3 V
Sampling Frequency: 20KHz~216KHz
Jitter: <0.005UIp-p
Rise/Fall timer: <25ns
Audio work Direction: 1 way or 2 ways
Electrical & Mechanical
Input Power Requirements: DC 5V@2A
Power Adapter: AC 90V~240V
Power Consumption: < 5W

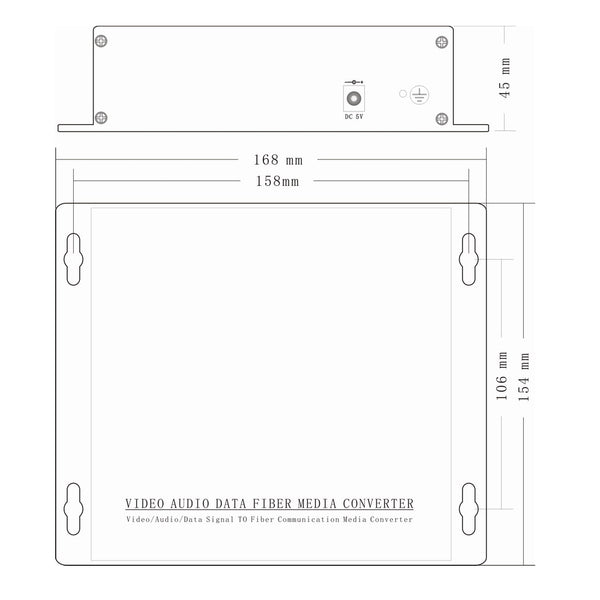

Stand-Alone Dimensions: 168mm × 154mm × 45mm
Shipping Weight: (include Transmitter & Receiver ) 2.5kg
Environmental
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours
Package:
1. 1 x transmitter with optical module.
2. 1 x receiver with optical module.
3. 2 x Power Adapter with US/EU/UK/AU plug.
