Panasonic's RCU AJ-RC10G Remotely Powered by SMPTE hybrid cable with 10 Pins Remote Control

Transwan

Regular price $1.00

Set

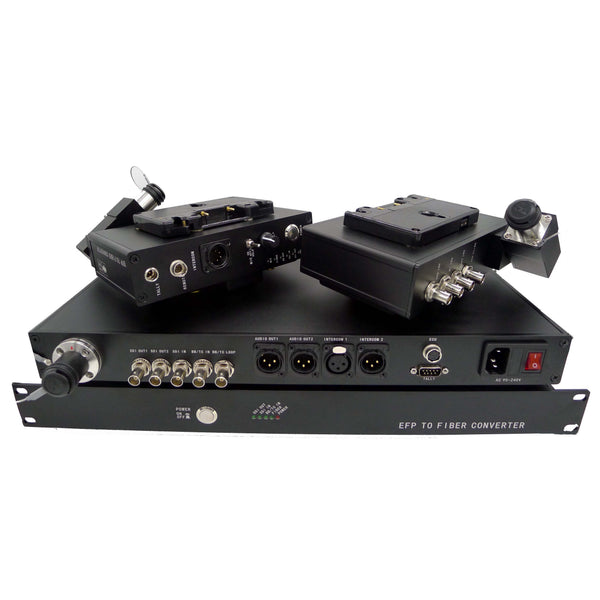

BY-EFP- AJ-RC10G (EFP to fiber for Panasonic RCU) includes a Camera Optic Adaptor and a Optic Base Station. The system transports 1 ch 3G/HD-SDI signal from the camera to the Base Station, 1 ch Reverse 3G/HD-SDI, Genlock or BB/TC, Remote control for Panasonic camera(for Panasonic 10 pin interface, base can be connected Panasonic RCU AJ-RC10G,ECU AG-EC4G), intercom (Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected intercom main station), tally(One color or two colors can be selected), Remote camera power supply (14.6V DC up to 100 Watts). The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SMPTE hybrid cable, insuring robust, trouble-free connectivity on any studio or remote production.

Features:

1. 1ch forward and 1ch reverse SDI
2. Handle all Pathological patterns
3. Automatic cable equalization to ensure signal integrity
4. 3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M
5. Mic inputs with mute and pre-amps
6. Headphone with volume up or down
7. Remote control (for Sony/ for Panasonic/ for JVC/ for Ikegami/ for Datavideo optional)
8. Tally LED+/- wet output or dry Contact Closure optional
9. V-mount or A-mount (Anton/Bauer)battery plate optional
10. Genlock or TC/BB is available
11. Reverse PGM/IFB audio optional
12. 10/100M Ethernet is optional
13. Remote camera power supply (14.6V DC up to 100 Watts), with insertion detection protection, Lemo SMPTE 304 or Neutrik OpticalCON DUO connector
14. SMPTE hybrid cable 200+m

Parameters:

Distance: 10 Kilometers (SMF) or 300 Meters (MMF)
Fiber type: 62.5/125um MMF,50/125um MMF, 9/125μm SMF
Fiber Connector: Lemo SMPTE 304
SDI Connector: Universal Standard BNC
3G SDI Format:
1)All inputs and outputs are equalized and re-clocked
2)Pass all pathological patterns
3)SMPTE424M/292/259 and DVB-ASI compliance
4)Supports embedded audio and data signals
5)Support SD-SDI & HD-SDI & 3G-SDI, Support 270Mbps & 1.485Gbps & 2.97Gbps SDI Video

Dimension of Rx: 19" 1U rack mount (480 x 250 x 50 mm)
Gross.W: 10 Kg
Power Supply of Rx:  AC 85-260V/50Hz
Working Temperature: 0 ℃~+85 ℃ ;
Relative Humidity: 0 ~ 95%

Application:
Television studio, mobile studio
EFP Electronic Field Production, major sporting events and large celebrations broadcast live
ENG camera (outdoor photo camcorders) upgraded to a EFP camera.
OB Van

Functions:

Parameters:

Note:  the listed price is not the real,  we will offer after confirming all functions and details, Almost all are the customized,  Please contact us at transwan@vip.163.com for more information.
