Fiber Optic System for SONY HDW-750 with 4 Ch 3G-SDI/Tally/Intercom/Remote in OB Van

Transwan

Regular price $5,999.00

Set

Description:

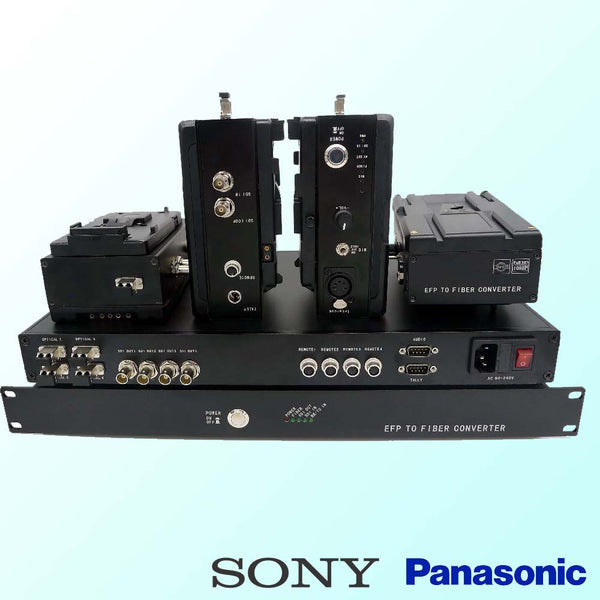

BY-EFP-S750 includes 4 Camera Optic Adaptors and a Optic Base Station(4 channel). The system transports a 3G/HD-SDI signal from the Sony HDW-730 or HDW-750 series camera to the Base Station, Reverse video(SDI or CVBS),Remote control data(SONY’s 8 pin interface, Connect Sony RCU/RCP RM-B150, RM-B170, RM-B750), Intercom (Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected Clearcom or RTS , etc intercom main station), Tally(1 or 2 colors is optional). Genlock signal, blackburst/trilevel sync or Time code is optional.

Features:

1) 4 x 3G SDI forward
2) Pass all Pathological patterns. Uncompressed lossless transmission without delay over 10 Kilometers Fiber
3) SD, HD, 3G automatic input detection, support 270Mbit / s - 1.48Gbit / s –3Gbit / s rate.
4) Support SMPTE-424M 3Gbps HD-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI serial digital video signals and DVB-ASI signals
5) Industry-standard connectors for all inputs and outputs; Supports Sony / Panasonic / JVC etc Intercom & Remote control device's
6) Intercom/Tally/Remote over Long-Distance Fiber, Support Sony HDW-750 / 730 series etc

7) LED indicators

Functions includes:

Note:  1. need 4 x Adaptors (Transmitters) to work with CCU (Receiver) for 4 Cameramen work.

Application:
Television studio, mobile studio
EFP Electronic Field Production, major sporting events and large celebrations broadcast live
ENG camera (outdoor photo camcorders) upgraded to a EFP camera.
OB Van

Parameters:

Distance: 10 Kilometers (SMF) or 300 Meters (MMF)
Fiber type: 62.5/125um MMF,50/125um MMF, 9/125μm SMF
Fiber Connector:  2 x LC connector
SDI Connector: BNC
3G SDI Format:
1)All inputs and outputs are equalized and re-clocked
2)Pass all pathological patterns
3)SMPTE424M/292/259 and DVB-ASI compliance
4)Supports embedded audio and data signals
5)Support SD-SDI & HD-SDI & 3G-SDI, Support 270Mbps & 1.485Gbps & 2.97Gbps SDI Video
Dimension of Rx (CCU): 19" 1U rack mount (480 x 250 x 50 mm)
Gross.W: 10 Kg
Power Supply of Rx:  AC 85-260V/50Hz
Working Temperature: 0 ℃~+85 ℃ ;
Relative Humidity: 0 ~ 95%

Note:  the listed price is not the real,  we will offer after confirming all functions and details,  most cases are the customized,  Please contact us at sales@transwan.com.cn for more information.
